CEILING ANTENNA 360° OMNI LOW PROFILE INDOOR 5dBi, 698-960/1710-4000MHz for 3G, 4G, LTE, 5G Mobile Networks or 2.4Ghz WiFi



The NUB Outdoor Omni Directional Low Profile Antenna by Outback Antennas

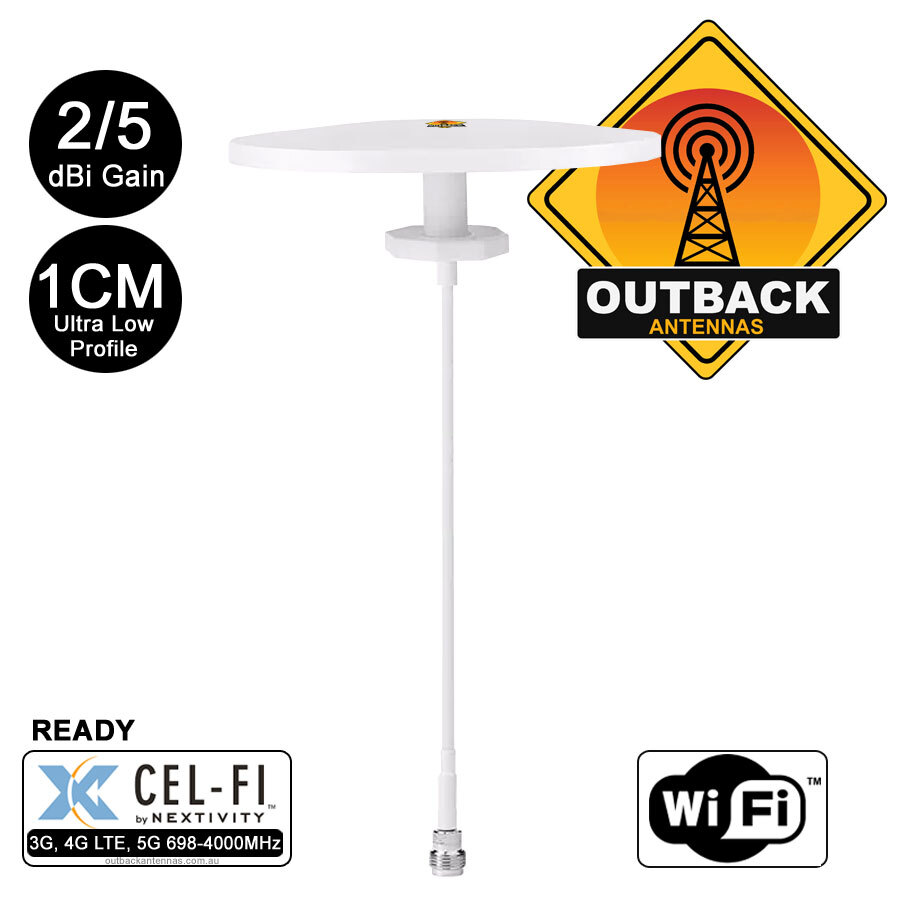

The "PIKLET" INDOOR directional antenna is designed to operate on the cellular network with all mobile carriers, regardless of what frequency they operate on. This very low profile ceiling mountable antenna offers a 5dBi gain and is the perfect indoor antenna for Caravans, Motorhomes, Boats oe even in the home office environment. No longer do you have to buy a new antenna when you switch carriers or be concerned what frequency your antenna supports. Perfect for indoor mobile repeater applications.

The "PIKLET" Outback Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require beamwidth for complete indoor coverage.

Features

  • Suitable for all mobile carriers
  • Very Low Profile Antenna
  • Provides a 2dbi gain for 698-960 MHz
  •  Provides a 5dbi gain for 1710-4000 MHz
  • Includes RG58 cable x 300mm Long
  • Short cable tail with N female connector
  • Ceiling or Wall Mountable
  • Ideal for Cel-Fi GO repeater applications for Home. Office, Marine and Caravan
  • or 2.4Ghz WiFi Applications

Dimensions: 170Dx170Wx10L mm

Weight: 500g

The "PIKLET" Ceiling Mount Omni Antenna INDOOR 5dBi, 698-960/1710-4000MHz 3G, 4G & 5G

Pack Includes:

  • 1 x The "PIKLET" Omni Ceiling Antenna Indoor 5dBi, 698-960/1710-4000MHz



The "PIKLET" Omni Ceiling Antenna INTDOOR 5dBi, 698-4000MHz - SPECIFICATIONS



Electrical Characteristics
Frequency Range (MHz) 698-960/1710-4000MHz
Polarization Omni
Gain (dBi) 2/5
Horizontal 3dB Beamwidth 360°
Verticalal 3dB Beamwidth 95/35°
VSWR   ≤1.8/≤1.5
Input Impedance   (Ω) 50
Maximum Power   (W) 100
Lightning Protection DC grounding
Mechanical Characteristics
Connector type Type N Female
Mount Type Ceiling Mount
Cable length (Meter) 3 (customizable)
Radome material UV-ABS
Mount way Ceiling or Wall
Reflector material Brass
Dimensions (mm) 170x170x10
Weight (g) 500
Environmental Characteristics
Noise Factor (dBi) ≤1.5
Waterproof NA
Operating Temperature (℃) -40-+60°C
Relative Humidity Up to 95%
ROHS Compliant yes



SHIPPING SPECIFICATIONS

SKU ANT-OA-PIKLET-NF
Model # ANT-OA-PIKLET-NF
Barcode # 4.81E+11
Brand Outback Antennas
Shipping Weight 0.5000kg
Shipping Width 0.195m
Shipping Height 0.102m
Shipping Length 0.195m
Shipping Cubic 0.003879000m3
Unit Of Measure ea
